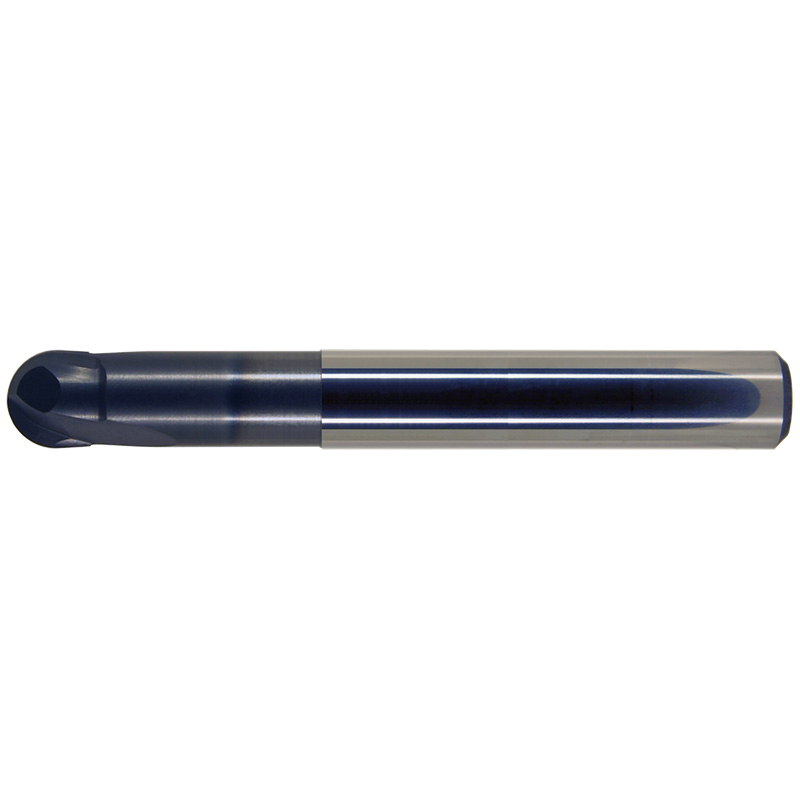

SOLID CARBIDE ENDMILLS

H Series - Ball Nose
Specificly desined for machining hardened steel after heat treatment up to 65 HRC. Made from super micro-grain Tungsten Carbide rods imported from Germany, and coated with special heat and wear resistent layer inveneted in Japan. When machining high hardness material with H series tools, you can apply faster feed rate to finish your tasks in shorter time. When machining softer materials, the ability to resist wear will increase total quantity of the workpices you can finish with earch cutting tool.
PlayPause
previous arrowprevious arrow
next arrownext arrow
Shadow
螺旋角38度 刃徑公差 柄徑公差 R角公差 鎢鋼等級 WXS鍍層 適用熱處理鋼材
斜坡 圓孔 溝槽 仿形 圓溝
For hardened steel after heat-treatment process or hardness over 45 HRC, such as SKD1/4/10/11/61.
Capable of machining steel of high hardness, durable cutting edges, long serviceable life, conisistent quality.

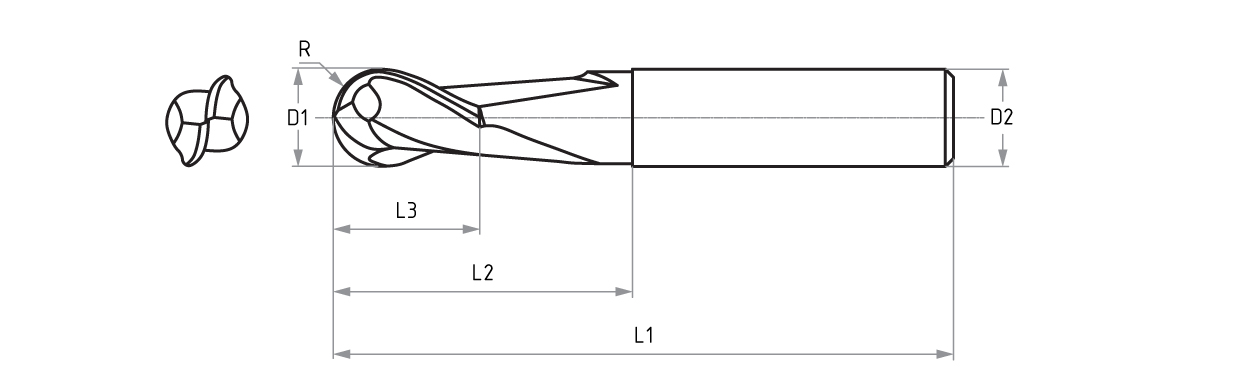

  • Ordering Number Diameter of Cut
    D1    		 Length of Cut
    L2    		 Effective Length
    L3
    Radius
    R    		 Length of Shank
    D2    		 Overall Length
    L1
    Flutes
    Z    		 Stock
    BHF02004050-0402 2 4 - 1 4 50 2 Y
    BH02004005050-0202 2 2 5 1 4 50 2 Y
    BHF03004050-0602 3 6 - 1.5 4 50 2 Y
    BH03004008050-0302 3 3 10 1.5 4 50 2 Y
    BHF04004050-1002 4 10 - 2 4 50 2 Y
    BH04004015050-0402 4 4 15 2 4 50 2 Y
    BH04004015050-0802 4 8 15 2 4 50 2 Y
    BHF06006050-1202 6 12 - 3 6 50 2 Y
    BH06006020050-0482 6 4.8 20 3 6 50 2 Y
    BH06006020050-0602 6 6 20 3 6 50 2 Y
    BHF08008063-1602 8 16 - 4 8 63 2 Y
    BH08008025063-0642 8 6.4 25 4 8 63 2 Y
    BH08008025063-0802 8 8 25 4 8 63 2 Y
    BHF10010070-2002 10 20 - 5 10 70 2 Y
    BHF12012079-2402 12 24 - 6 12 79 2 Y

  • Operation Data

    切削速度：
    材料 應用 切削速度(Vc)
    硬度 ≦ 48HRC 粗加工 150-190
    精加工 190-250
    硬度 ≦ 55HRC 精加工 120-250
    硬度 ≦ 65HRC 精加工 80-120
    每刃切削量 (fz) / 切深 (ap)：溝槽粗加工
    材料 刃徑 2 3-4 5-6 7-8 9-10 11-12 13-14 15-16
    硬度 ≦ 48HRC fz 0.02-0.04 0.03-0.06 0.05-0.08 0.05-0.08 0.06-0.10 0.07-0.12 0.07-0.12 0.08-0.12
    ap 0.04-0.10 0.08-0.20 0.15-0.40 0.20-0.50 0.20-0.60 0.20-0.70 0.20-0.80 0.20-0.80
    硬度 ≦ 55HRC fz 0.02-0.04 0.03-0.06 0.05-0.08 0.05-0.08 0.06-0.10 0.07-0.12 0.07-0.12 0.08-0.12
    ap 0.04-0.10 0.08-0.20 0.15-0.40 0.20-0.50 0.20-0.60 0.20-0.70 0.20-0.80 0.20-0.80
    硬度 ≦ 65HRC fz 0.02-0.04 0.03-0.06 0.05-0.08 0.05-0.08 0.06-0.10 0.07-0.12 0.07-0.12 0.08-0.12
    ap 0.04-0.10 0.08-0.20 0.15-0.35 0.20-0.45 0.20-0.50 0.20-0.60 0.20-0.60 0.20-0.60
    每刃切削量 (fz) / 切深 (ap)：輪廓粗加工 (切削深度最大可設定為刀具切削刃長度)
    材料 刃徑 2 3-4 5-6 7-8 9-10 11-12 13-14 15-16
    硬度 ≦ 48HRC fz 0.03-0.06 0.07-0.10 0.10-0.15 0.10-0.15 0.12-0.17 0.12-0.17 0.12-0.17 0.17-0.22
    硬度 ≦ 55HRC fz 0.03-0.06 0.07-0.10 0.10-0.15 0.10-0.15 0.12-0.17 0.12-0.17 0.12-0.17 0.17-0.22
    硬度 ≦ 65HRC fz 0.03-0.06 0.07-0.10 0.10-0.15 0.10-0.15 0.12-0.17 0.12-0.17 0.12-0.17 0.17-0.22
    每刃切削量 (fz) / 切深 (ap)：輪廓精加工 (切削深度最大可設定為刀具切削刃長度)
    材料 刃徑 2 3-4 5-6 7-8 9-10 11-12 13-14 15-16
    硬度 ≦ 48HRC fz 0.01-0.02 0.01-0.03 0.02-0.04 0.02-0.04 0.03-0.05 0.03-0.05 0.03-0.05 0.04-0.06
    硬度 ≦ 55HRC fz 0.01-0.02 0.01-0.03 0.02-0.04 0.02-0.04 0.03-0.05 0.03-0.05 0.03-0.05 0.04-0.06
    硬度 ≦ 65HRC fz 0.01-0.02 0.01-0.03 0.02-0.04 0.02-0.04 0.03-0.05 0.03-0.05 0.03-0.05 0.04-0.06

  • Example of Machining

    料號 案例一 案例二
    機器廠牌 OKUMA 快捷 AV-128
    最高轉速 15000 24000
    CNC 控制器 OKUMA SIEMENS
    刀把系統 HSK-A63 HSK-A63
    材料牌號 S136H 8407
    材料硬度 56 HRC 52 HRC
    刀具直徑 6 6
    刀具R角 0.7 1
    刀具刃數 4 2
    夾持方式 筒夾 熱縮
    伸出長 25 28
    冷卻方式 吹氣 噴水
    加工方式/路徑 開粗挖槽 二粗、等高、等寬
    切削速度 Vc 150 188
    每刃切削量 fz 0.3 0.1
    轉速 N (S) 8000 10000
    進給 Vf 10000 4000
    加工總深度 Dc 20 16
    切深 Ap 0.2 0.12
    切寬 Ae 2 0.16
    加工總時間 T 50 90
    屑片量
    客戶評價 刀具磨耗僅0.001mm，客戶非常滿意 刀具幾乎無磨損，客戶非常滿意

  • Catalogs & Flyers

Professional distributor & manufacturer, we provide you machining technology and total solution of products, not only products, but also increasing your competetiveness
